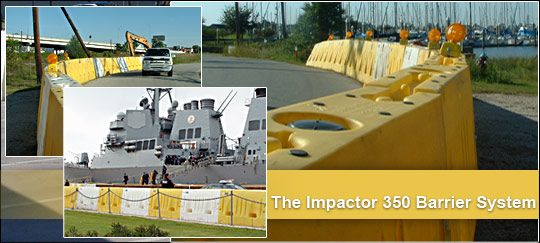

Impactor 350

    The Impactor 350 Barrier System is a cost effective, portable energy absorbing water filled barrier system that increases safety and security around work zones, moves traffic through construction areas, and provides protection for drivers, workers, pedestrians, and equipment on and around the job. The barriers are a heavy duty plastic channelizing system that is larger and more visible than barricades, cones, or barrels - effectively alerting drivers to changing traffic patterns and work areas. This system meets and exceeds all other prior design specs. It meets the day to day needs of local governments and businesses involved in construction, public works, safety, and security. Each barrier has two built in sign post stabilizers (one at each end) to accomodate signage or fence posts allowing you to add chain link fencing on top of the barrier. Barriers are made of virign plastics and can be repaired and/or recycled.

  • Rotationally Molded LLDPE 8461 Exxon Linear Plastic with UV inhibitors
  • Model I-350/1 48” tall x 78” long x 24” base x 12” top, empty weight 140 pounds, full weight 2430 pounds, functional length 72”
  • Model I-350/2 31” tall x 78” long x 24” base x 18” top, empty weight 125 pounds, full weight approx. 1500 pounds, functional length 72”
  • Positively interlocking in three places - base, center, and a unique top locking arm for high speed applications
  • Large recessed fill cap, recessed drain plugs on both sides
  • Sign post holes and stabilizers to accommodate both round and square sign poles
  • Forklift holes for moving and lifting


Impactor 350
Our Standard barrier.



Aproximate ballast,
Inches of Water, US LBS
0” ..........................140
16” .......................1000
24” .......................1400
32” .......................1800
40” .......................2100
48” .......................2430



Short Barrier
A shorter barrier to be used where there is a greater need for visability.

Aproximate ballast,
Inches of Water, US LBS
0” ..........................140
16” .......................1000
24” .......................1400
32” .......................1800
40” .......................2100



End Piece
A conelike endpiece that gives increased visabilty and lessens damage on car or equipment hitting the barrier.
